PETOL™ HAMMERTIGHT™ Wrench Retainer

Patent #9,079,300

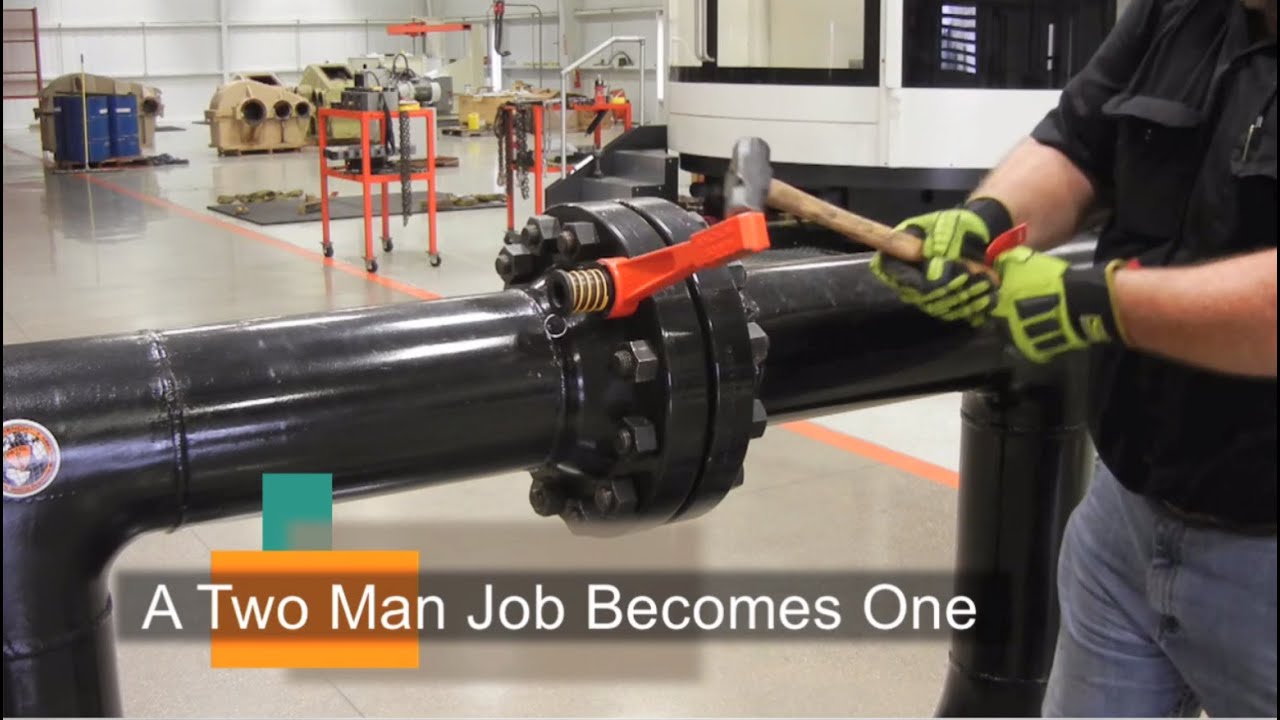

PETOL™ HAMMERTIGHT™ Wrench Retainers are safe and easy-to-use tools designed to hold a striking wrench (also called a slugging or hammer wrench) on a nut for a safer, hands free, one man operation. The HAMMERTIGHT tool easily threads onto the stud. A spring loaded plate enables the wrench to be repositioned on the nut without removing the retainer.

PETOL HAMMERTIGHT wrench retainers are sold individually and in sets. Imperial and Metric sizes are surface coated for rust protection and suitable for use with all brands of 6-pt. and 12-pt. straight or offset wrenches. (see our PETOL Striking Wrench and PETOL Striking Face Box Wrench)

See Selection Guide to determine appropriate retainer for job.

BUY ONLINE BUY SETS

PART NO.	FITS STUD SIZE	NUT SIZE	OVERALL LENGTH	WEIGHT
PETOL™ HAMMERTIGHT™ Wrench Retainers — Imperial Sizes
Click any Part No. to send an inquiry.
HTS58	5/8" – 11	1-1/16"	1-11/16"	8 ozs.
HTS34	3/4" – 10	1-1/4"	1-3/4"	10 ozs.
HTS78	7/8" – 9	1-7/16"	2"	13 ozs.
HTS100	1" – 8	1-5/8"	2-1/4"	1 lb.
HTS118	1-1/8" – 8	1-13/16"	2-5/16"	1-1/8 lbs.
HTS114	1-1/4" – 8	2"	2-1/2"	1-3/8 lbs.
HTS138	1-3/8" – 8	2-3/16"	2-11/16"	1-1/2 lbs.
HTS112	1-1/2" – 8	2-3/8"	2-7/8"	1-5/8 lbs.
HTS158	1-5/8" – 8	2-9/16"	3-1/16"	1-7/8 lbs.
HTS134	1-3/4" – 8	2-3/4"	3-1/16"	2-1/8 lbs.
HTS178	1-7/8" – 8	2-15/16"	3-1/8"	2-3/8 lbs.
HTS200	2" – 8	3-1/8"	3-3/16"	2-1/2 lbs.
HTS214	2-1/4" – 8	3-1/2"	3-1/4"	2-7/8 lbs.
HTS212	2-1/2" – 8	3-7/8"	3-11/16"	3-5/8 lbs.

PART NO.	FITS STUD SIZE	NUT SIZE	OVERALL LENGTH	WEIGHT
PETOL™ HAMMERTIGHT™ Wrench Retainers — Metric Sizes
Click any Part No. to send an inquiry.
HTSM16	16mm – 2.0	24mm	1-11/16"	8 ozs.
HTSM18	18mm – 2.5	27mm	1-11/16"	9 ozs.
HTSM20	20mm – 2.5	30mm	1-3/4"	10 ozs.
HTSM22	22mm – 2.5	32mm	1-3/4"	11 ozs.
HTSM24	24mm – 3.0	36mm	2"	13 ozs.
HTSM27	27mm – 3.0	41mm	2-1/4"	1 lb.
HTSM30	30mm – 3.5	46mm	2-5/16"	1-1/8 lbs.
HTSM33	33mm – 3.5	50mm	2-1/2"	1-3/8 lbs.
HTSM36	36mm – 4.0	55mm	2-11/16"	1-1/2 lbs.
HTSM39	39mm – 4.0	60mm	2-7/8"	1-5/8 lbs.
HTSM42	42mm – 4.5	65mm	3-1/16"	1-7/8 lbs.
HTSM46	46mm – 5.0	72mm	3-1/16"	2-1/8 lbs.
HTSM48	48mm – 5.0	75mm	3-1/8"	2-3/8 lbs.
HTSM52	52mm – 5.0	80mm	3-1/4"	2-1/2 lbs.
HTSM56	56mm – 5.5	85mm	3-1/4"	2-5/8 lbs.
HTSM60	60mm – 5.5	90mm	3-11/16"	2-7/8 lbs.
HTSM64	64mm – 6.0	95mm	3-11/16"	3-5/8 lbs.
NOTE: Custom sizes and pitches available upon request. See Selection Guide to determine appropriate retainer for job requirement.

PART NO.	SET OF 10 INCLUDES 1 EACH:	WEIGHT
PETOL™ HAMMERTIGHT™ Wrench Retainer Sets
Click any Part No. to send an inquiry.
IMPERIAL
HTS34178	HTS34 thru HTS178	22 lbs.
METRIC
HTSM1639	HTSM16 thru HTSM39	20-1/2 lbs.
HTSM1842	HTSM18 thru HTSM42	22 lbs.
HTSM2046	HTSM20 thru HTSM46	23-1/2 lbs.
