TITAN® Tubing Elevator

TITAN® TUBING ELEVATORS are constructed of high-quality alloy steel and heat-treated for maximum strength and durability. Each elevator is manufactured and tested to API 8C. In addition, the load collar is flame hardened for increased abrasion resistance.

All TITAN Tubing Elevators are equipped with a double locking retainer assembly for maximum safety.

PART NO.	TUBING SIZE	WEIGHT	RATED LOAD
TITAN® Tubing Elevator
Click any Part No. to send an inquiry.
TEA035-238U	2-3/8" External Upset	53 lbs.	35 tons
TEA035-278U	2-7/8" External Upset	52 lbs.	35 tons
TEA100-238N	2-3/8" Non-Upset	116 lbs.	100 tons
TEA100-238U	2-3/8" External Upset	116 lbs.	100 tons
TEA100-278N	2-7/8" Non-Upset	114 lbs.	100 tons
TEA100-278U	2-7/8" External Upset	114 lbs.	100 tons
TEA100-312N	3-1/2" Non-Upset	112 lbs.	100 tons
TEA100-312U	3-1/2" External Upset	112 lbs.	100 tons

Files are PDF under 1MB unless otherwise noted.

API Certificate

WARNING!
Improper use of tubing elevators may
result in INJURY OR DEATH!
Do Not Exceed Rated Load!
Follow safe practices listed in Data Book.

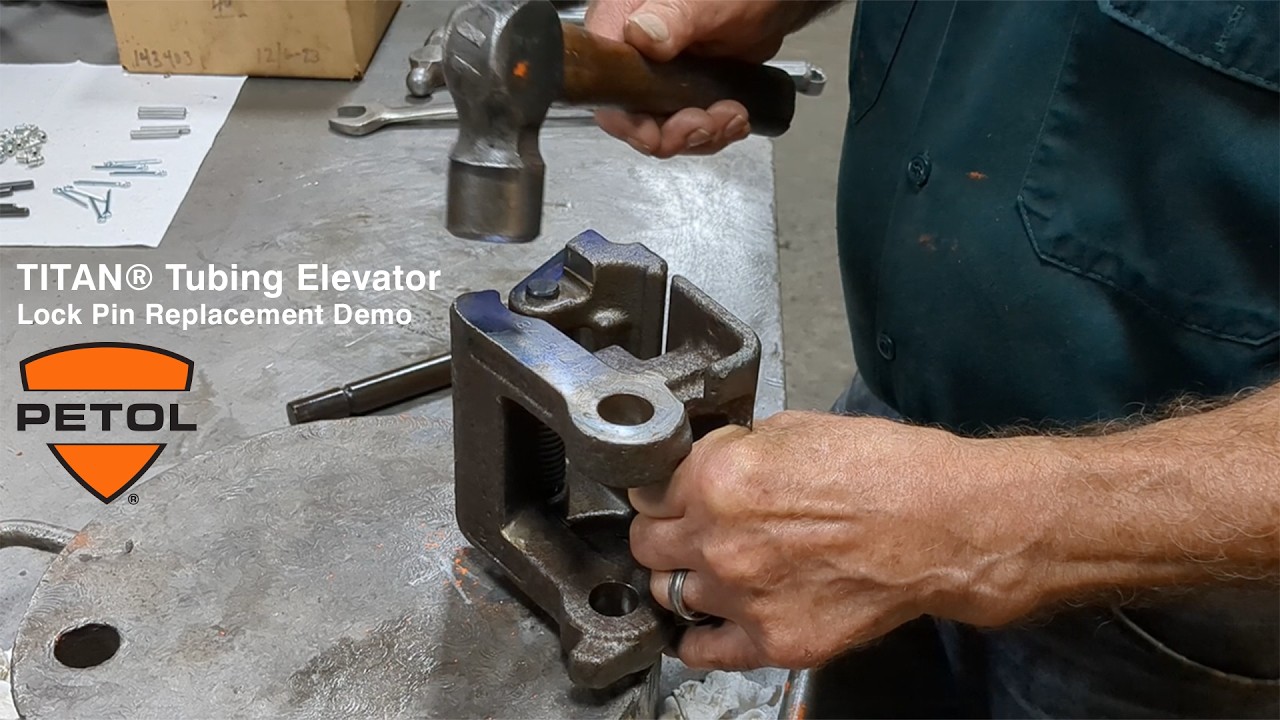

TITAN® Tubing Elevator - Lock Pin Replacement Demo

Demonstration of the proper replacement of the Lock Pin on TITAN® Tubing Elevators.
